CNC laser cutting
Our laser cutting machines form the core of our broad production range. All of our machines are automatically loaded and unloaded by our fully automated sheet metal storage system meaning we have highly automated equipment at our disposal.Our machines are suitable for producing both small individual parts as well as large-scale serial parts.
Production volumes
- High-quality cut parts with outstanding dimensional accuracy in small, medium and large numbers
- Various thin and thick sheet metal materials
- Machining tubes and profiles and producing high-quality bevel cuts
- Cutting sheet steel up to 120 mm thick
Our machines

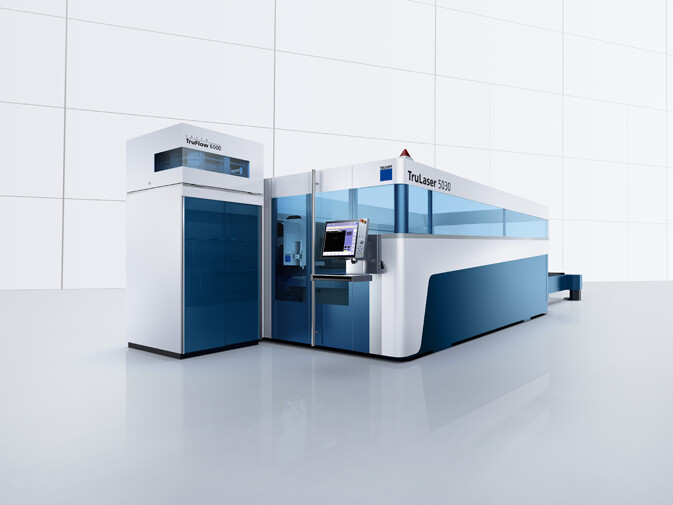

2x Trumpf TruLaser 5030 L52 (single cutting head laser with LiftMaster)
| Laser power: | 6.000 W |
| Working area: | 3.000 x 1.5000 mm |
| Max. material thicknesses: | Steel: 25 mm |
| Stainless Steel: 25 mm | |
| Aluminium: 15 mm |

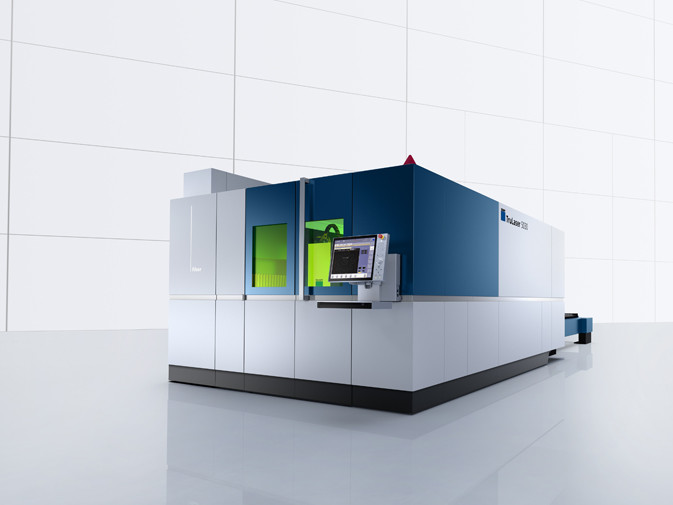

1x Trumpf TruLaser 5030 fiber (single cutting head laser with LiftMaster Store)
| Laser power: | 6.000 W |
| Working area: | 3.000 x 1.500 mm |
| Max. workpiece weight: | 900 kg |
| Max. material thickness: | Structural steel: 25 mm |
| Stainless steel: 20 mm | |
| Aluminium: 20 mm | |
| Copper/brass: 10 mm |

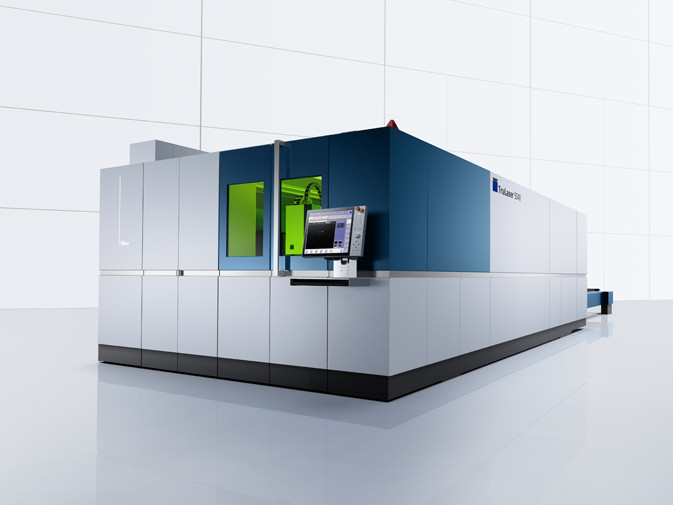

1x Trumpf TruLaser 5040 fiber (single cutting head laser with LiftMaster Store and SortMaster)
| Laser power: | 5,000 W |
| Working area: | 4,000 x 2,000 mm |
| Max. workpiece weight: | 1.7 t |
| Max. material thicknesses: | Structural steel: 25 mm |
| Stainless steel: 20 mm | |
| Aluminium: 15mm | |
| Copper/brass: 10 mm |
1x Trumpf TruLaser 5030 fiber (single cutting head laser with LiftMaster Store and SortMaster)
| Laser power: | 8.000 W |
| Working space: | 3.000 x 1.500 mm |
| max. workpiece weight: | 900 kg |
| max. material thicknesses: | Structural steel: 25 mm |
| Stainless steel: 40 mm | |
| Aluminium: 20 mm | |
| Copper/brass: 10 mm |

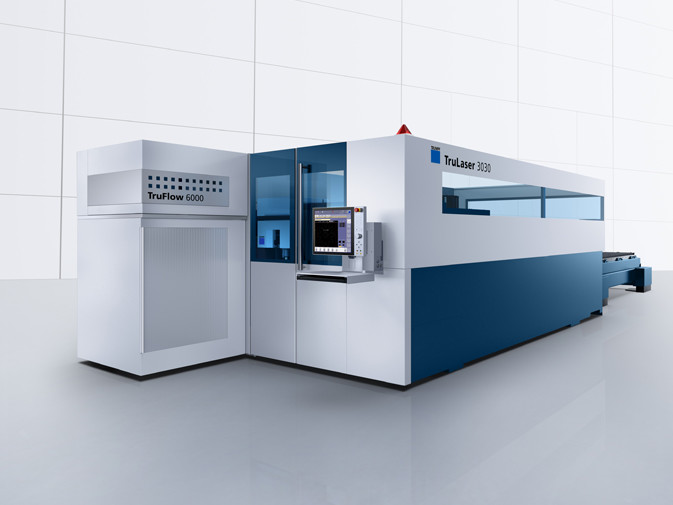

1x Trumpf TruLaser 3030 L20 (single cutting head laser with LiftMaster)
| laser power: | 6,000 W |
| Working area: | 3,000 x 1,500 mm |
| Max. material thicknesses: | Steel 25 mm |
| Stainless steel: | |
| Aluminium: 15 mm |

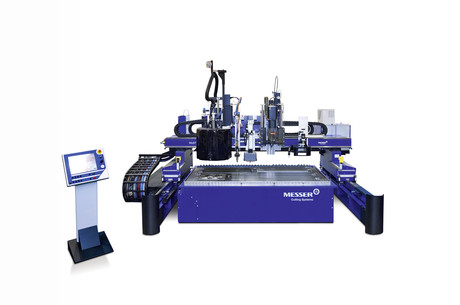

1x Messer MultiTherm 4000 (plasma flame cutting system)
| Working area: | 6,000 x 2,500 mm |
| Max. Sheet thickness: | 30 mm |
| Flame cutting: 120 mm |
